Huahui Energia Rechargeable Lto Cell Li-Ion HFC40130 3.2V 10Ah Iron Phosphate Lithium battery LTO Battery
Product Description
- Our super Li-ion battery adopts unique design of explosion-proof valves to replaces explosion-proof lines in traditional lithium battery, which removes the potential risks of explosion and catching fire in case of any accident.
- We abandon the traditional process of welding between electrodes and cap by leading 2 poles in the same direction after their reverting with the films. In this way, the probability of empty solder and internal short-circuit is effectively reduced, thus enhancing the reliability and decreasing the impedance of the battery. Besides, the leading poles could be soldered on special PCB directly, to reduce the impedance of battery pack by saving process of spot welding.
HTC40130 Parameter
| Model: | HFC 40130 |
| Voltage&Capacity: | 3.2V 10Ah |
| Rate: | 5C |
| Diameter: | 40mm (±0.15mm) |
| Height: | 128mm (±0.5mm) |
| Weight: | 307g |
| Cycle life: | 0.5C > 2000 times, 1C and above > 12000 times |
| Positive electrode material: | Mixed material of lithium cobaltate and lithium manganate |
| Anode material: | Lithium Titanate |
Product Advantage
Characteristic:
◉ Revolutionary explosion-proof design, no leakage, no heavy metal；
◉ Cost-effective, much safer than traditional lithium battery, super long cycle life；
◉ High consistency, Distinguished performance in high temperature, Stable charge and discharge, Rate battery；
◉ Operating temperature range:-20～75 degree
◉ Working rate:5～15C
◉ Cycle Life:0.5C>2000 times,High rate>1300 times
Revolutionary double explosion-proof technology:
Top colloidal particles explosion-proof: automatic carbonization in case of high temperature makes the battery automatically inactive
Bottom cross explosion-proof valve: the bottom will be slightly propped open when under pressure, no fire or explosion.
Application
Energy storage equipment,Outdoor power bank
Huahui Energy Needs your support!
Real Pic of Huahui energy Hunan Base
Hunan Huahui New Energy Co., Ltd.
is a high-tech enterprise specializing in R&D, design, production and sales of capacitive lithium-ion batteries. Huahui Energy has a complete range of lithium batteries, covering five major material systems: HTC lithium titanate, HFC lithium iron phosphate, HMC lithium manganate, HCC lithium cobalt oxide, and NSC ternary lithium. It has the characteristics of good safety, strong consistency, long cycle life and good discharge characteristics. Mainly used in smart toys, small household appliances, LED lighting, smart vehicle equipment, electronic cigarettes, digital products, energy storage and other fields. Complete export certification, exported to many countries in Asia, Europe, America and so on.
Product Tags:
|
|

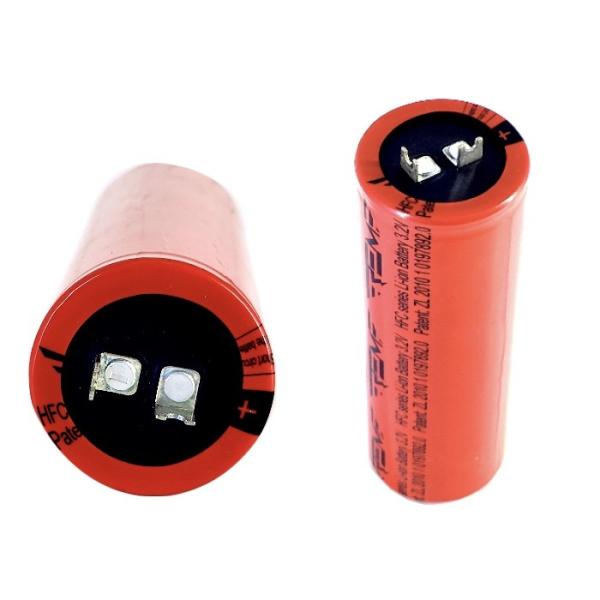

HFC40130 LTO Lifepo4 3.2 V Battery 12000mAh Iron Phosphate Lithium Battery Images
|
